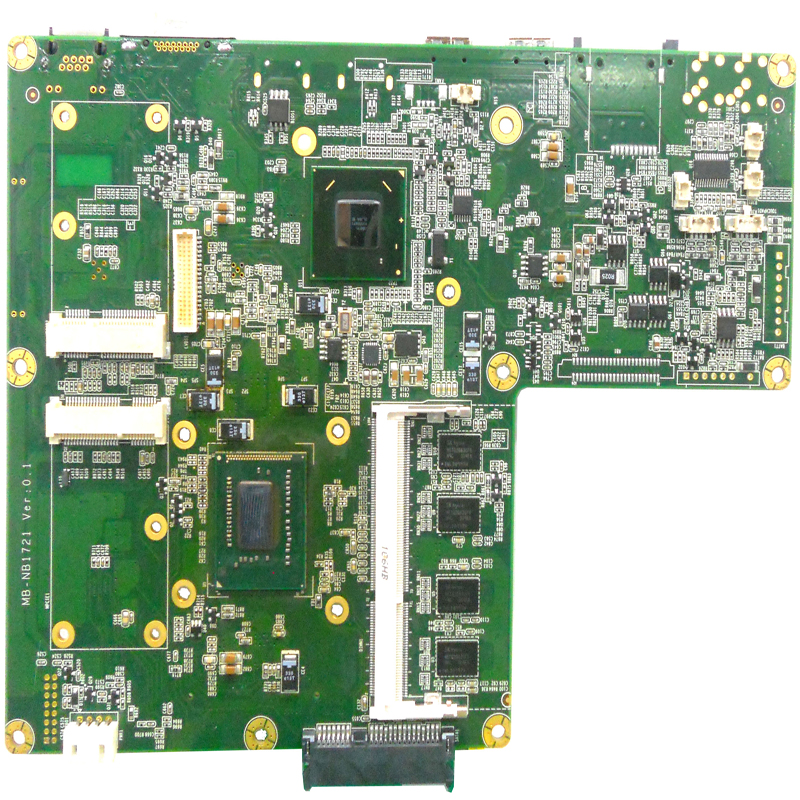

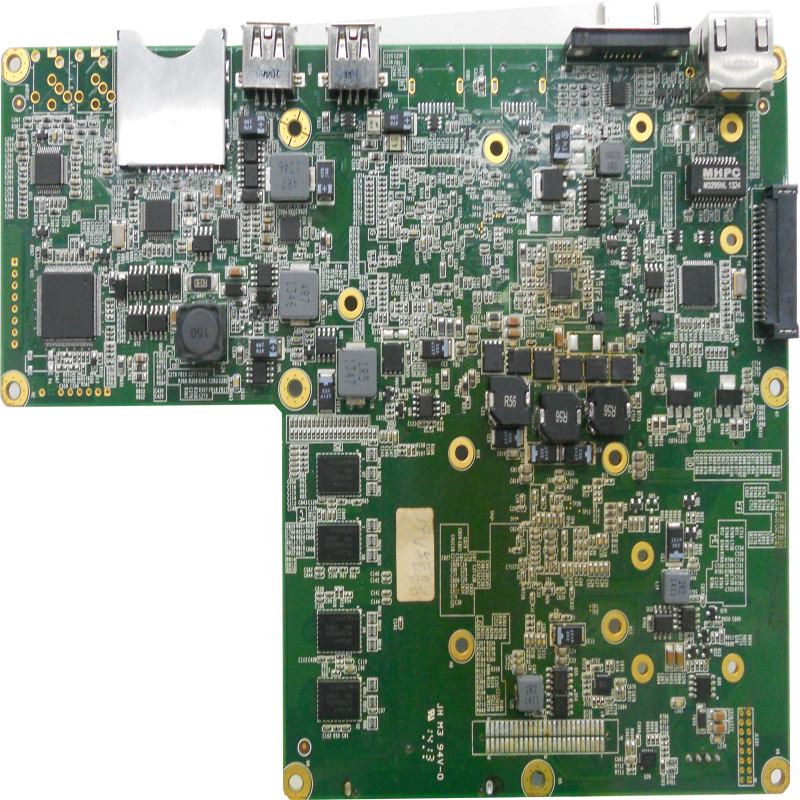

Notebook Board Series MB-NB1271
Intel® 2nd/ 3rd Core™ i7/i5/i3/Celeron® Processor
2xMini PCI-E，all kinds of interfaces
With dual battery and EC management
On-board 2GB/4GB DDR3 1333/1600MHz and 1x SO-DIMM slot
Support VGA/LVDS(dual channel 24 bit）extended，Support Dual Independent Display
Support SATA RAID 0，1，5，10
Expand to multi-function by EB-IO
Support SD CARD and SIM CARD
Share：
- Specifications
- Ordering
- Download
- Recommended
|
Item
|
Description
|
|
|
System
|
CPU
|
Intel® Core™ i7-3612QE (4x 2.1 GHz, 6MB cache, TDP 35W) Intel® Core™ i7-3555LE (2x 2.5 GHz, 4MB cache, TDP 25W) Intel® Core™ i7-3537U (2x 2.0 GHz, 4MB cache, TDP 17W) Intel® Core™ i7-2715QE (4x 2.1 GHz, 6MB cache, TDP 45W) Intel® Core™ i7-2610UE (2x 2.4 GHz, 4MB cache, TDP 17W) Support Intel® Hyper threading and intelligent acceleration technology |
|
DMI
|
5GT/S | |
|
Chipset
|
Intel® NM70/QM67/QM77 Express（optional） | |
|
BIOS
|
AMI UEFI 2.x BIOS, SPI Flash | |
|
Memory
|
Type
|
DDR3 SDRAM, 1333/1600 MHz，up to 16GB |
|
ECC
|
- | |
|
Max. Capacity
|
16 GB | |
|
On-board
|
2GB DDR3 SDRAM，up to 8GB | |
|
Slot
|
1x DDR3-1333/1600 SO-DIMM slot | |
|
Storage
|
SATA
|
2 x SATA3.0 (6.0Gbps) ,3x SATA2.0(3.0Gbps) ,Support RAID 0，1，5，10。 |
|
PATA(IDE)
|
- | |
|
SSD
|
- | |
|
CF
|
- | |
|
Others
|
- | |
|
Display
|
Chipset
|
CPU Integrated |
|
Graphics
|
Intel® HD Graphics 4000 (based on CPU) | |
|
VGA
|
Up to 2048 x 1536@60Hz | |
|
LCD
|
Single channel or dual channel 24-bit LVDS, up to 1920 x 1200 | |
|
DVI
|
- | |
|
SDVO
|
- | |
|
DP
|
- | |
|
Display Interface
|
Support Dual Independent Display | |
|
Ethernet
|
Chipset
|
1 x Intel® 82583V Gigabit Ethernet Controller |
|
Speed
|
10/100/1000 Mbps | |
|
Ext. Slot
|
|
4 PCI Express x1 , LPC, |
|
Watchdog
|
|
255 grade |
|
I/O
|
USB
|
6 x USB 2.0，2 x USB 3.0 |
|
Audio
|
Realtek ALC892 HD Audio Controller,Support Mic/Line out/2x2W speaker | |
|
card read
|
SD card socket ， SIM card slot | |
|
Rear IO Board
|
EB-IO CN1/CN2，PCIe x2,LPC,USB x2, SATA x2 | |
|
Others
|
- | |
|
Power
|
Type
|
2xBattery or DC 19V |
|
Voltage
|
DC 19V | |
|
Power Consumption（Typical）
|
35W(BY I7-3555LE CPU) | |
|
Environment
|
Operating Temp.
|
-20 ~ 70℃ （-40～85℃ optional ) |
|
Storage Temp.
|
-40 ~ 85℃ （-55～105℃ optional ) | |
|
Humidity
|
5 ~ 95%, system no condensing | |
|
Others
|
- | |
|
Form Factor
|
Formfactor
|
No standard Notebook Board |
|
Dimentions
|
160 x 210 mm | |
|
Model No.
|
Description
|
| MB-NB1271-3612QE | MB-NB1271 with Intel® Core™ i7-3612QE (4x 2.1 GHz, 6MB cache, TDP 35W) |
| MB-NB1271-3555LE | MB-NB1271 with Intel® Core™ i7-3555LE (2 x 2.5 GHz, 4MB cache, TDP 25W) |
| MB-NB1271-3537U | MB-NB1271 with Intel® Core™ i7-3537U (2x 2.0 GHz, 4MB cache, TDP 17W) |
| Num | Name | Time | Download |
